G801 Non-explosion-proof Liquid Ultrasonic Flow Meter

The G801 is a new-generation liquid ultrasonic flowmeter, designed and integrated with technologies such as "sound velocity tracking", multi-pulse, DSP (Digital Signal Processing), and automatic ultrasonic energy enhancement. These technologies ensure the stability, accuracy, and reliability of flow measurement. It adopts a universal transmitter to realize the function of multiple measurement parameters/multi-ranges. According to actual conditions, it can be configured with single-channel or dual-channel sensors. Aiming at the characteristics of liquid flow measurement in process industry, it provides ultrasonic sensors in types of clamp-on, insertion, and in-line tapping, which can be quickly installed with matching mounting fixtures.

Measurement Accuracy:

Single-channel: ±1.0% (±0.5% after calibration)

Dual-channel: ±0.5% (±0.3% after calibration)

Working Principle:

Time-of-Flight Method

Explosion-Proof Rating:

Non-Explosion-Proof

Protection Rating:

IP66

Installation Type:

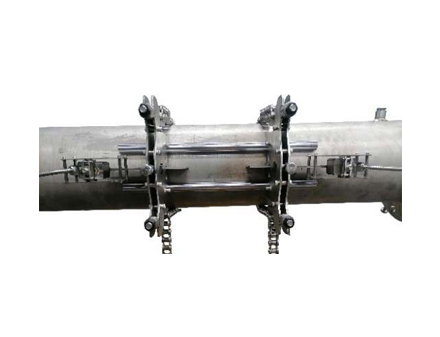

Clamp-on, Insertion, In-line Tapping

Installation Pipe Diameter:

DN20 ~ DN6500 / For other specifications, please consult the factory for details

Measurement Functions:

Operating condition volume flow

Standard condition volume flow

Mass flow

Measuring Medium:

Water, seawater, sewage, various oils, asphalt, liquid chemical products, etc.

Medium Temperature Range:

-200 ~ 600℃ / For other ranges, please consult the factory for details

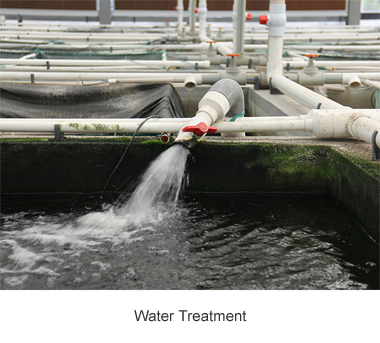

Application scenarios




Quick Selection and Matching

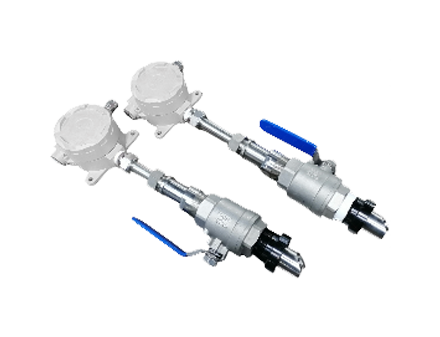

XL-M2

Liquid In-line Tapping Sensor

SS316 Stainless steel /IP68

XL-M1

Liquid In-line Tapping Sensor

SS316 Stainless steel /IP68

XL-K5

Liquid In-line Tapping Sensor

SS316 Stainless steel /IP68

XL-K2

Liquid In-line Tapping Sensor

SS316 Stainless steel /IP68

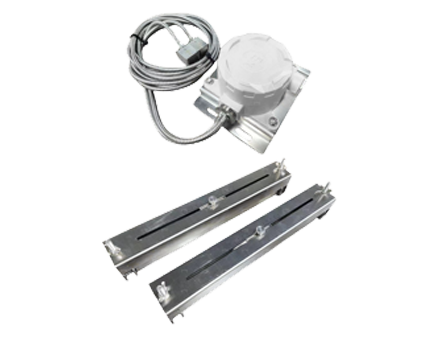

WP-M2

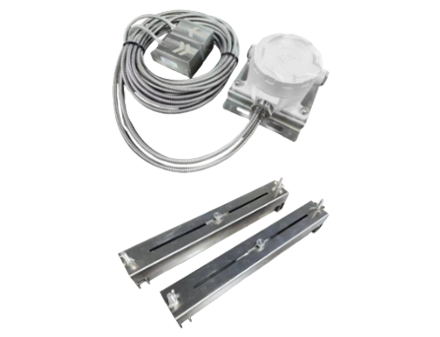

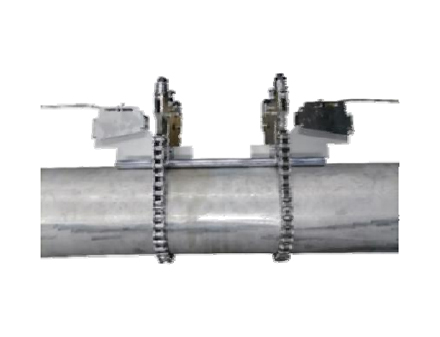

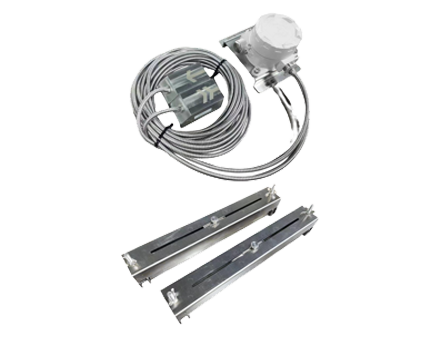

Liquid Clamp-on Extreme Temperature Sensor

SS316 Stainless steel /IP68

WP-M1

Liquid Clamp-on Extreme Temperature Sensor

SS316 Stainless steel /IP68

WP-K5

Liquid Clamp-on Extreme Temperature Sensor

SS316 Stainless steel /IP68

WP-K2

Liquid Clamp-on Extreme Temperature Sensor

SS316 Stainless steel /IP68

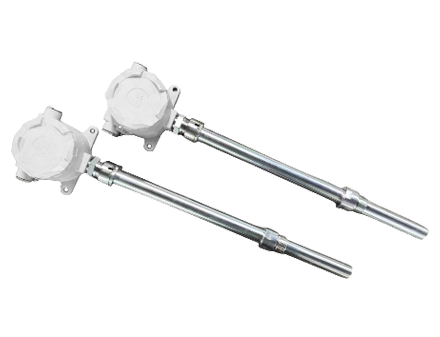

WL-M1

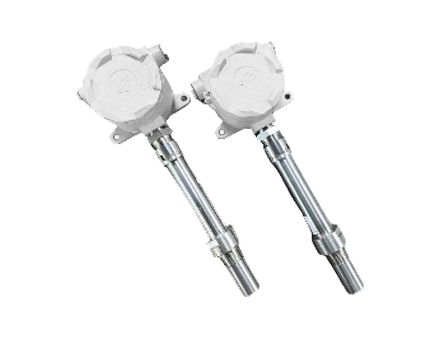

Liquid-Inserted Sensor

Stainless steel 316/IP68

WL-K5

Liquid-Inserted Sensor

Stainless steel 316/IP68

WL-K2

Liquid-Inserted Sensor

Stainless steel 316/IP68

WL-WRN

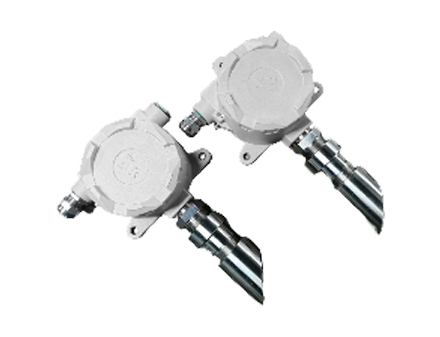

Liquid-Inserted Extreme Temperature Sensor

Special stainless steel/IP68

WL-WRE

Liquid-Inserted Extreme Temperature Sensor

Special stainless steel /IP68

WL-TL

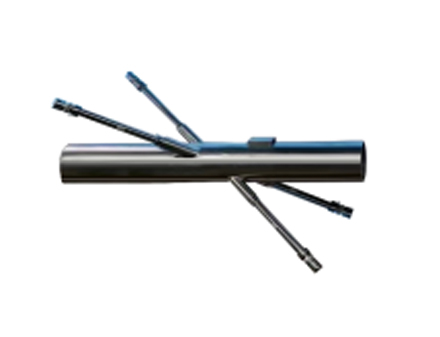

Liquid In-line Drilled Sensor

Stainless steel 316/IP68

SCH40、SCH80、SCH120

Lava Flowmeter Sensor

Fully encapsulated in a stainless - steel housing
