BDO Unit Ultrasonic Flowmeter Procurement Project
As an important part of chemical production, the fluid metering accuracy of the BDO (1,4 - butanediol) unit is directly related to product quality and production efficiency.
The G868 is a new - generation liquid ultrasonic flowmeter. It is designed with technologies such as "sound - velocity tracking",
multi - pulse, DSP (Digital Signal Processing), and automatic ultrasonic energy enhancement. These technologies ensure the stability, accuracy, and reliability of flow measurement.
With an explosion - proof design and CNEX certification, it is specifically used for flow measurement in hazardous areas.
The BDO unit in the ultrasonic project for the BDO unit of XX New Energy Enterprise involves various fluids that are corrosive, high-viscosity, or contain impurities (such as butane and alcohol mixtures). Using ultrasonic flowmeters with a non-intrusive measurement method can avoid the accuracy attenuation issue of traditional mechanical flowmeters caused by mechanical wear. They are particularly suitable for fluid environments containing particles or bubbles.

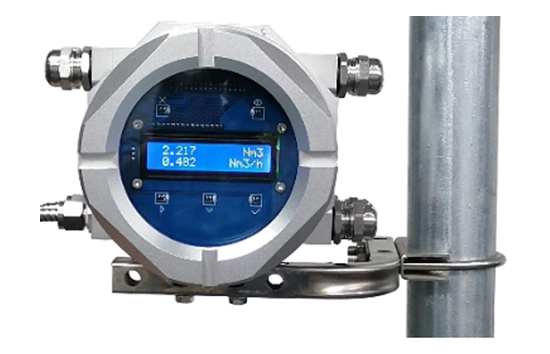

According to the on-site operating condition requirements, we selected the GF707 explosion-proof single-channel liquid ultrasonic flowmeter for the customer. As a new generation of liquid ultrasonic flowmeters, it is designed with and adopts technologies such as "sound velocity tracking", multi-pulse, DSP digital signal processing, and automatic enhancement of ultrasonic energy. These technologies ensure the stability, accuracy, and reliability of flow measurement.

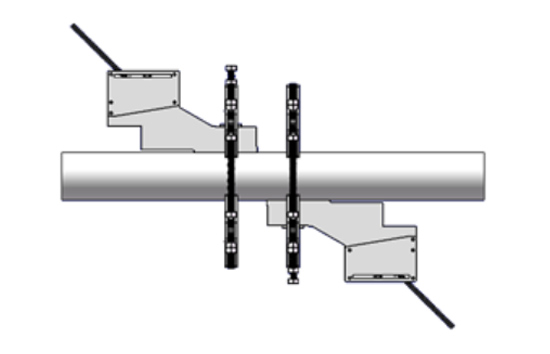

The product features an explosion-proof design and has obtained CNEX certification, making it specifically suitable for flow measurement in hazardous areas. For this project, high-temperature buffer plate sensors were used based on the medium temperature.
Selection： Explosion-proof Single-channel Liquid Ultrasonic Flowmeter
Measuring Medium：BDO (1,4-Butanediol)
Pipe Diameter：DN80
Temperature：130℃
The application of the flowmeters in this project has reduced production costs and resource waste. By efficiently recovering acetylene purge gas and reusing it as a raw material for the BDO unit, we have not only minimized resource waste caused by direct combustion but also lowered production costs, achieving the goal of cost reduction and efficiency improvement. In addition, the accurate measurement function of the flowmeters ensures fluid flow control during the production process, reducing equipment wear and maintenance costs resulting from unstable flow rates.
Ultrasonic Flowmeter Project for Sulfuric Acid Detection
The application of the flowmeter not only improves the efficiency and safety of the sulfuric acid production process, but also provides technical support for enterprises to reduce costs, increase efficiency and achieve sustainable development.
Ultrasonic Flowmeter Project for Boiler Gas Measurement
The flowmeter monitors parameters such as boiler gas flow rate, temperature, and pressure in real time to ensure safe production and prevent the occurrence of flammable and explosive accidents.
Ultrasonic Flowmeter Upgrade Project for Natural Gas Inlet
The flowmeter monitors parameters such as natural gas flow rate, temperature, and pressure in real time to ensure the accuracy and reliability of settlement data for both parties in the trade, thereby enabling trade settlement and cost accounting.
