G868 Explosion-proof Liquid Ultrasonic Flow Meter

The G868 is a new-generation liquid ultrasonic flowmeter. It is designed with and adopts technologies such as "sound velocity tracking", multi-pulse, DSP (Digital Signal Processing), and automatic enhancement of ultrasonic energy. These technologies ensure the stability, accuracy, and reliability of flow measurement. The flowmeter features an explosion-proof design and has obtained CNEX certification, making it specifically suitable for flow measurement in hazardous areas. It can meet the requirements of dangerous and complex environments as well as harsh process applications in the oil and gas field and chemical industries.

In response to the characteristics of liquid flow measurement in process industries, the G868 offers ultrasonic sensors in clamp-on, insertion, and online tapping types. When used with relevant mounting fixtures, it enables quick installation.

Measurement Accuracy

Single-channel: ±1.0% (±0.5% after calibration)

Dual-channel: ±0.5% (±0.3% after calibration)

Working Principle

Transit-time method

Explosion-proof Class

Ex d IIC T6

Protection Level

IP66

Installation Method

Clamp-on, insertion, online tapping

Measured Pipe Diameter

DN20 ～ DN6500 / For other specifications, please consult the factory for details

Measurement Functions

Working condition volume flow, standard condition volume flow, mass flow

Measured Medium

Water, seawater, sewage, various types of oil products, asphalt, liquid chemical products, etc.

Medium Temperature Range

-200 ～ 600℃ / For other ranges, please consult the factory for details

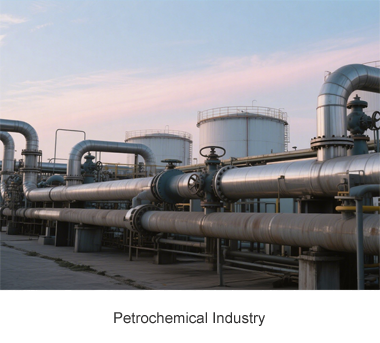

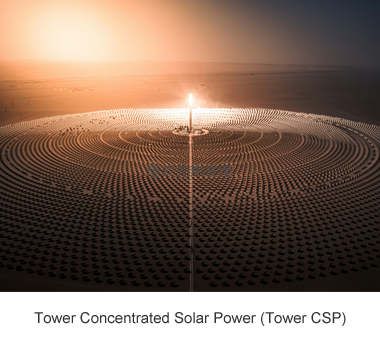

Application scenarios





Quick Selection and Matching

XL-M2

Liquid In-line Tapping Sensor

SS316 Stainless steel /IP68

XL-M1

Liquid In-line Tapping Sensor

SS316 Stainless steel /IP68

XL-K5

Liquid In-line Tapping Sensor

SS316 Stainless steel /IP68

XL-K2

Liquid In-line Tapping Sensor

SS316 Stainless steel /IP68

WP-M2

Liquid Clamp-on Extreme Temperature Sensor

SS316 Stainless steel /IP68

WP-M1

Liquid Clamp-on Extreme Temperature Sensor

SS316 Stainless steel /IP68

WP-K5

Liquid Clamp-on Extreme Temperature Sensor

SS316 Stainless steel /IP68

WP-K2

Liquid Clamp-on Extreme Temperature Sensor

SS316 Stainless steel /IP68

WL-M1

Liquid-Inserted Sensor

Stainless steel 316/IP68

WL-K5

Liquid-Inserted Sensor

Stainless steel 316/IP68

WL-K2

Liquid-Inserted Sensor

Stainless steel 316/IP68

WL-WRN

Liquid-Inserted Extreme Temperature Sensor

Special stainless steel /IP68

WL-WRE

Liquid-Inserted Extreme Temperature Sensor

Special stainless steel /IP68

WL-TL

Liquid In-line Drilled Sensor

Stainless steel 316/IP68

SCH40、SCH80、SCH120

Lava Flowmeter Sensor

Fully encapsulated in a stainless - steel housing
