Gas Leak Detection
Gas leakage is a serious safety hazard that can lead to fires, explosions, and environmental pollution. To ensure the safety of employees and the normal operation of equipment, it is necessary to detect gas leaks in a timely manner.
Gas leakage is a serious safety hazard that can lead to fires, explosions, and environmental pollution. To ensure the safety of employees and the normal operation of equipment, it is necessary to detect gas leaks in a timely manner.
Spraying soapy water on pipes and observing for bubbles is a traditional and classic method for pipeline leak detection. However, the pipeline layout in the production site is relatively complex. In many cases, we need to carry out work at heights, and some criss - cross pipelines are even inaccessible for inspection. Spraying soapy water is effective but inconvenient. It is inefficient to implement and very likely to result in missed detections.
Discover gas leaks promptly and quickly to prevent accidents.
Ensure the accuracy and reliability of the equipment under test.

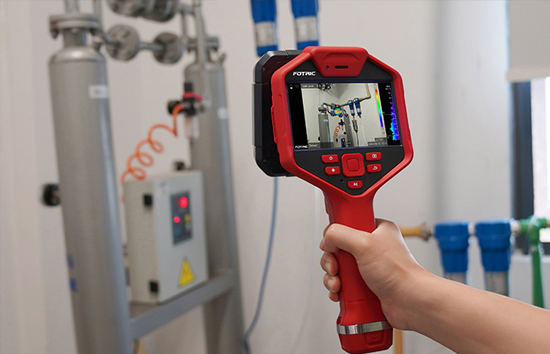

Portable Detector: Fotric Acoustic Imager, used for regular inspections and emergency detections.
Detection Principle: The occurrence of a leak is always accompanied by ultrasonic signals. Based on acoustic imaging technology, the Fotric Acoustic Imager uses a microphone array to obtain the sound wave information of the sound source. Through beam - forming and image recognition algorithms, it accurately superimposes the position of the sound source on the visual image, achieving the visual positioning of the sound source.
Simple: After turning on the Fotric Acoustic Imager, simply scan the pipeline under test.

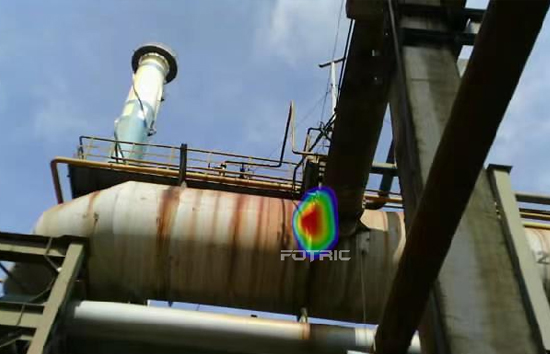

Intuitive: If there are leakage points after scanning, they can be directly located on the screen of the acoustic imager.
Efficient: There is no need to spray soapy water, which greatly improves the detection efficiency.
Accurate: With Fotric's self - developed acoustic imaging technology, a leakage with a 30μm aperture (at a distance of 2.5m and a pressure of 0.1MPa) can also be detected.
The FOTRIC 850MiX-Ex Series Handheld Explosion-Proof Acoustic-Thermal Imager is an innovative 2-in-1 product integrating infrared thermal imaging and acoustic imaging. It can not only quickly detect thermal defects of equipment but also accurately locate gas leaks and partial discharges, realizing multiple functions in one device!
The FOTRIC130S-Ex series single-spectrum temperature measurement tube camera is an advanced monitoring device integrating temperature measurement and imaging functions, which is widely used in the industrial and security fields.
To enable the smooth flow of "three-high" crude oil with high wax content, high pour point and high viscosity in the oil pipeline, the oil products are usually heated at the oil transportation station to keep the temperature of the oil products above the pour point or at an even higher temperature. Considering energy conservation, consumption reduction, cost reduction and efficiency improvement, insulation measures are usually added to the outer shell of the oil pipeline. When the outer surface temperature of the normal insulation layer is close to the ambient temperature, it indicates good insulation, which can achieve excellent energy-saving and heat preservation effects.
Gas Cylinder Leak Detection
As the core carrier in the gas industry, gas cylinders frequently encounter the problem of leakage. This not only causes direct economic losses due to the loss of gas media but also poses latent safety risks such as explosion and asphyxiation. Therefore, early detection and prevention of gas leakage are crucial for safeguarding the economic interests of enterprises. To accurately detect gas cylinder leakage, Fotric provides an acoustic imaging camera solution that can detect the leakage of any gas medium.
Sulfur Hexafluoride (SF₆) Leak Detection
Sulfur hexafluoride (SF₆) has a wide range of applications in the chemical and industrial fields, especially as an insulating and arc - extinguishing medium in the power industry. However, the hazards of sulfur hexafluoride are mainly related to its purity, usage environment, and mode of contact.
Compressed Air Leak Detection
Leaking compressed air can cause equipment instability and increase the risk of safety accidents.
Hydrogen Leak Detection
The hydrogen energy industry chain encompasses hydrogen production, storage, transportation, refueling, fuel cells and their applications. Throughout the upstream, mid - stream and downstream of the hydrogen industry chain, there is a common challenge - hydrogen leakage.
