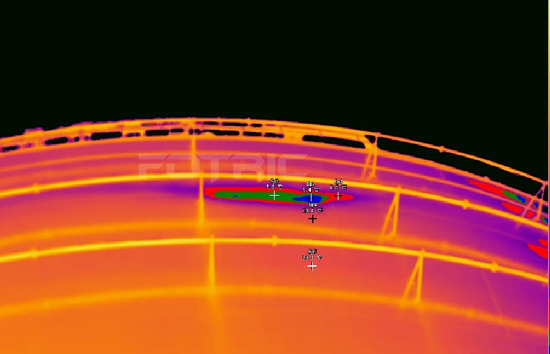

LNG Defects in Storage Tank Thermal Insulation Layer

LNGDefects in the storage tank insulation layer

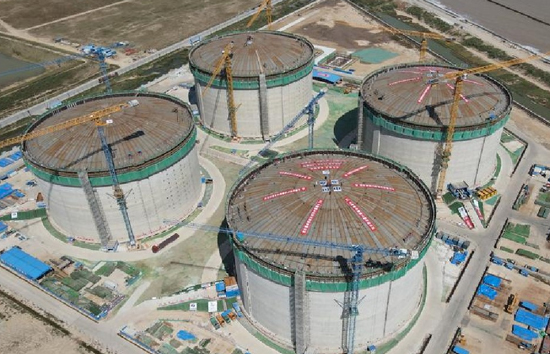

LNG storage tanks are typical cryogenic pressure vessels with a vacuum powder insulation type. They have a double - cylinder structure. The inner and outer cylinders are fixed by tension slings. The middle interlayer is filled with perlite, and a molecular sieve adsorber is set. There are vaporizers and cryogenic liquid pumps outside the storage tank, through which high - pressure gas can be directly sent out by the vaporizer. The material of the inner cylinder is austenitic stainless steel, such as 0Cr18Ni9 and SUS304. The outer cylinder is made of steel for general pressure vessels, such as 16MnR, 20g, and Q235r.
