The FOTRIC 850MiX-Ex Series Handheld Explosion-Proof Acoustic-Thermal Imager is an innovative 2-in-1 product integrating infrared thermal imaging and acoustic imaging. It can not only quickly detect thermal defects of equipment but also accurately locate gas leaks and partial discharges, realizing multiple functions in one device!

The FOTRIC130S-Ex series single-spectrum temperature measurement tube camera is an advanced monitoring device integrating temperature measurement and imaging functions, which is widely used in the industrial and security fields.

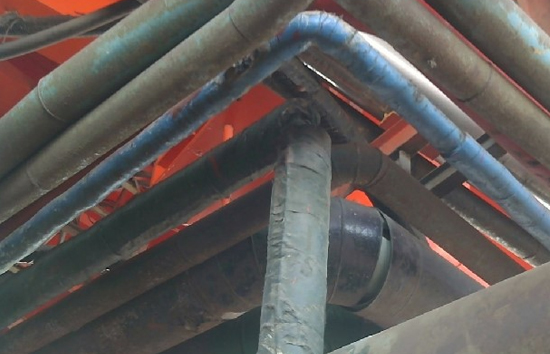

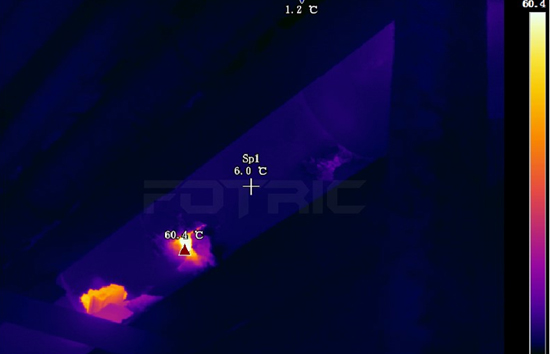

To enable the smooth flow of "three-high" crude oil with high wax content, high pour point and high viscosity in the oil pipeline, the oil products are usually heated at the oil transportation station to keep the temperature of the oil products above the pour point or at an even higher temperature. Considering energy conservation, consumption reduction, cost reduction and efficiency improvement, insulation measures are usually added to the outer shell of the oil pipeline. When the outer surface temperature of the normal insulation layer is close to the ambient temperature, it indicates good insulation, which can achieve excellent energy-saving and heat preservation effects.
