Core Advantages for Strong Protection | |
Highest Infrared Pixel 640*480 Utilizes a high - sensitivity infrared detector and advanced algorithms to stably measure temperature and achieve high - definition imaging in different temperature environments. | Visible - light Pixel 400 million It provides clearer and sharper photos, which helps improve the imaging quality in low - light environments. |
Highest Range -20~550℃ The wide - range design meets the needs of most application scenarios. | Multiple Uses Temperature Monitoring / Fire Spot Detection / Intrusion Detection Real - time monitoring of the temperature of scenes, objects under test, or people. Once an abnormal temperature is detected, an immediate warning is issued. |
Protection Level IP66 The whole machine has a high protection level, ensuring the stable operation of the temperature - measuring cylindrical camera in complex environments. | Multiple Options Regular Version / Explosion-proof Version Explosion - proof certification standard: Ex ib IIC T4 Gb, applicable to Zone 1 and Zone 2 of all explosive gas environments except coal mines and underground. |

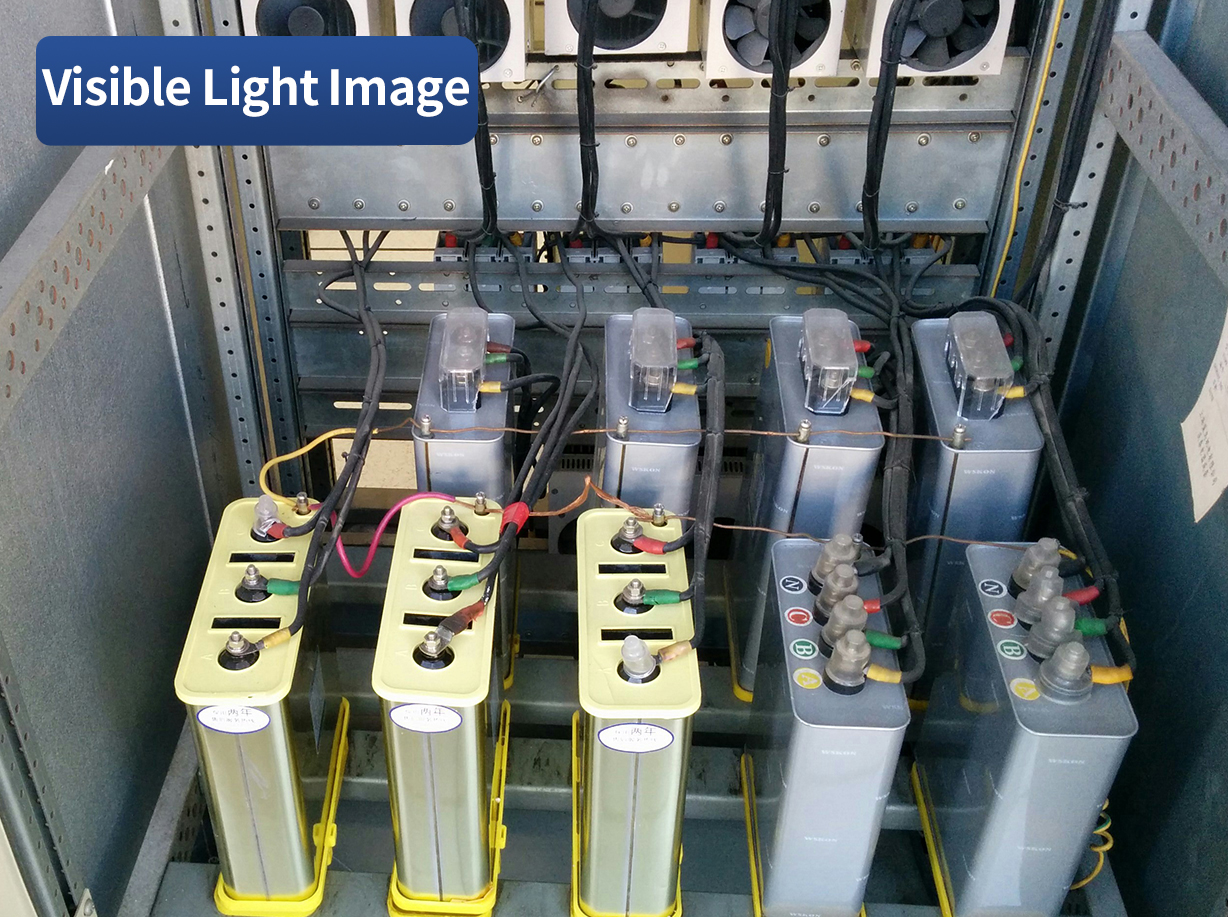

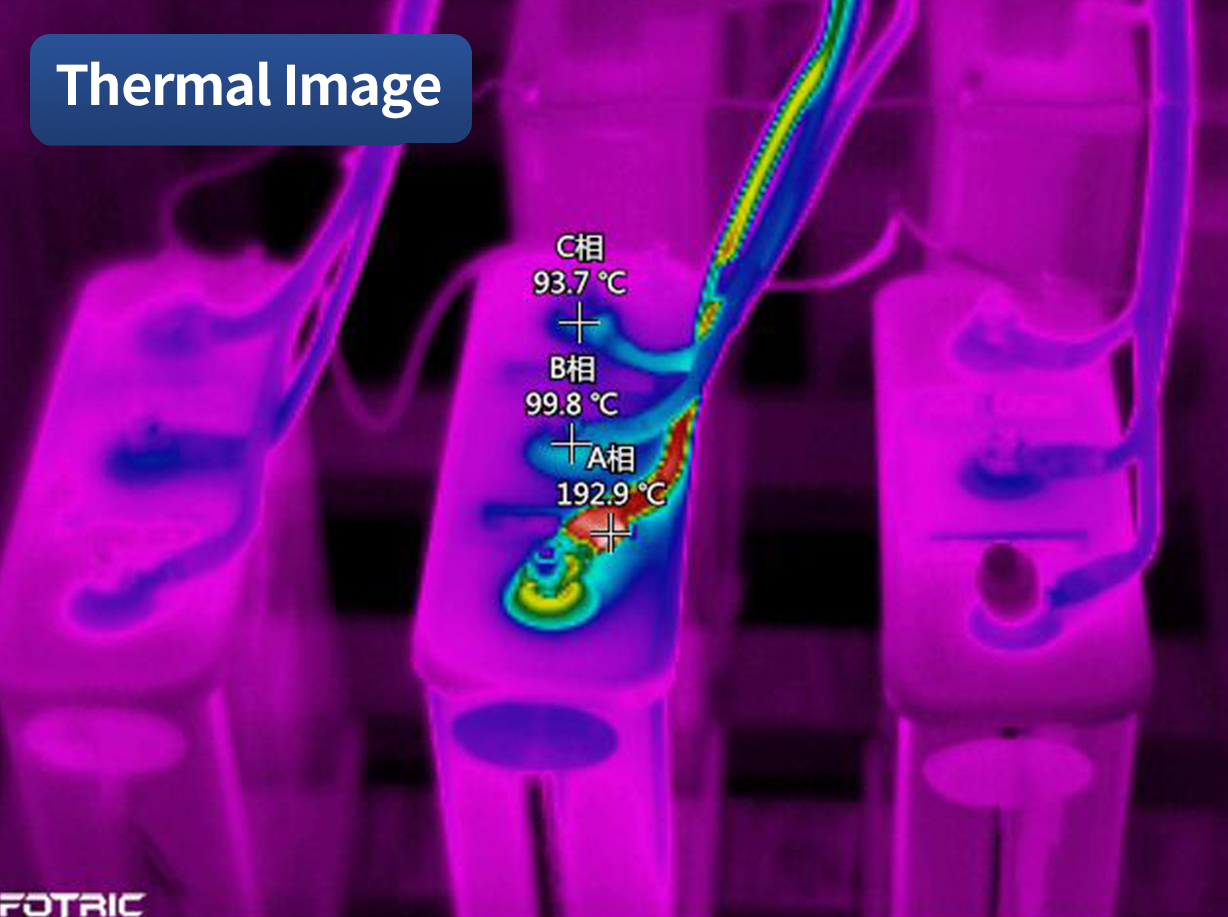

Visual Temperature Sensing Detection Dual - lens design for temperature visualization 4 - megapixel high - definition visible - light camera + up to 640*480 - pixel infrared camera Two temperature - measurement range options: - 20~350℃, - 20~550℃ The temperature - measurement distance can be selected with different lenses according to requirements. | |
 |  |

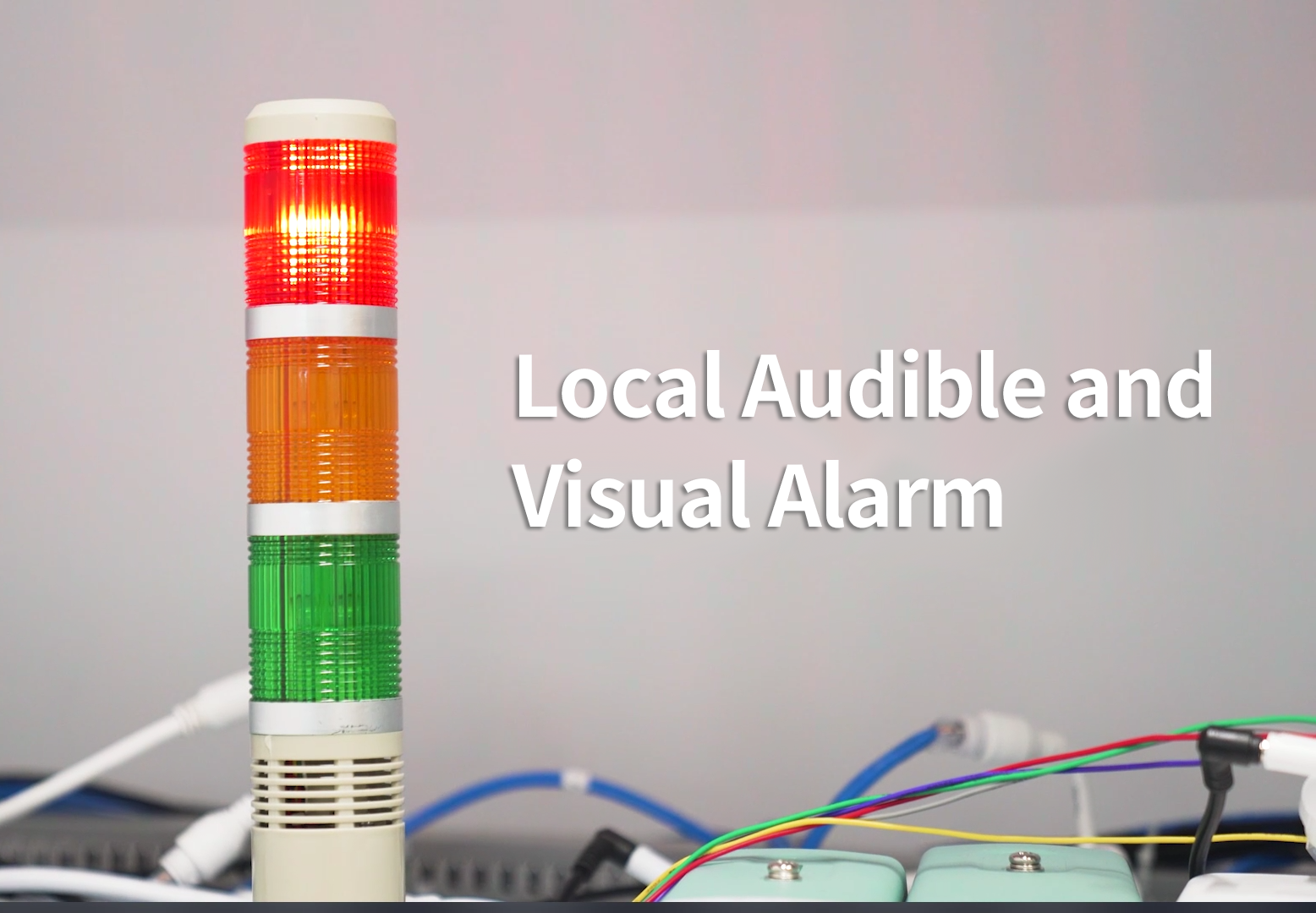

Temperature Abnormality Alarm The alarm temperature value can be set by oneself, and the temperature - measurement accuracy reaches ±2℃ or ±2%. When the temperature of the monitored object is higher than the set temperature, an automatic alarm is issued. Multiple alarm methods: acoustic - optical alarm, SMS, email... | |
 |  |

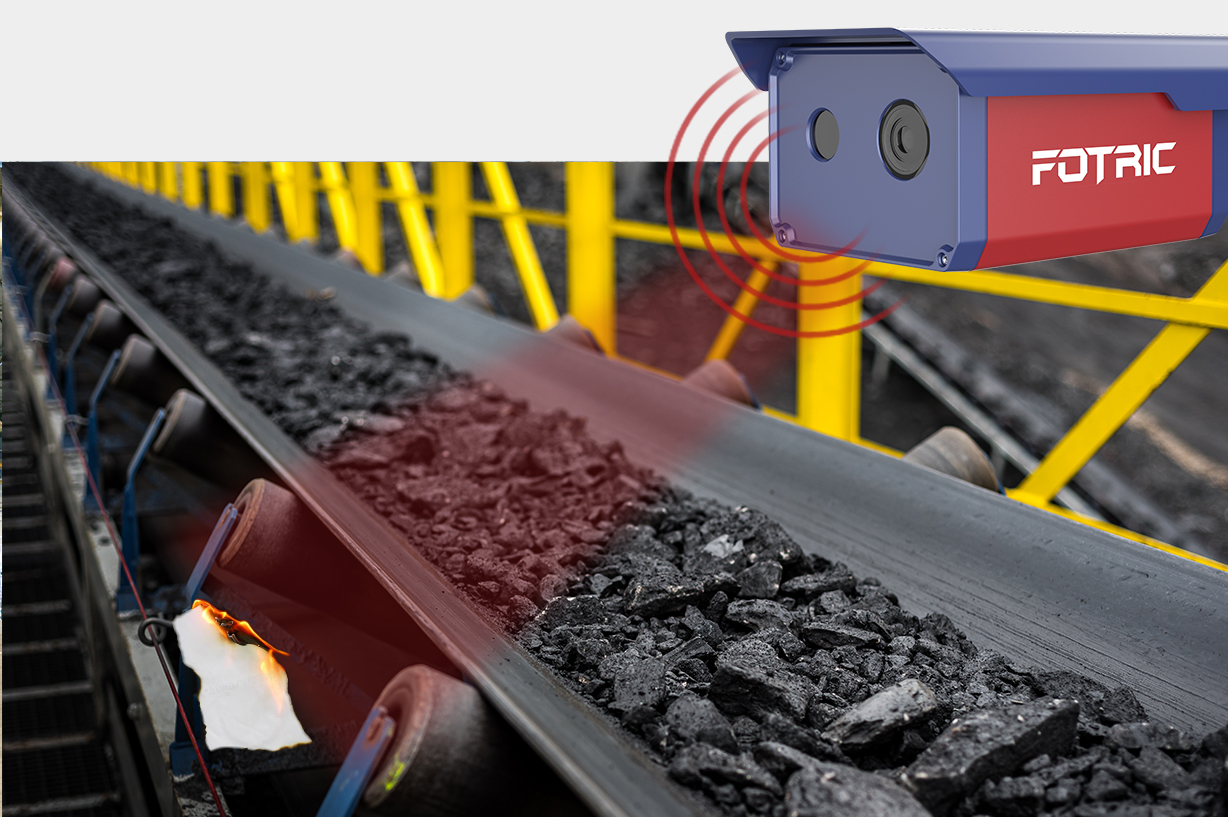

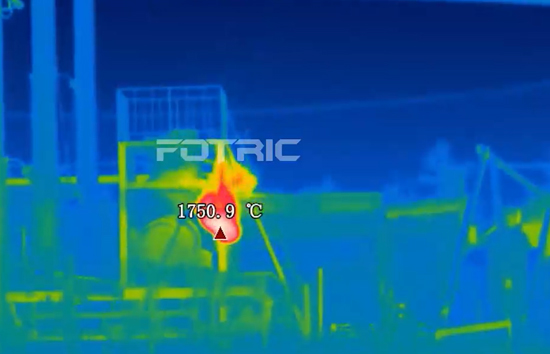

Smoking and Fire Spot Detection When someone is smoking or an object is burning, the 130D thermal imaging camera can promptly identify the high - temperature heat source, achieving ultra - early fire warning. | |
 |  |

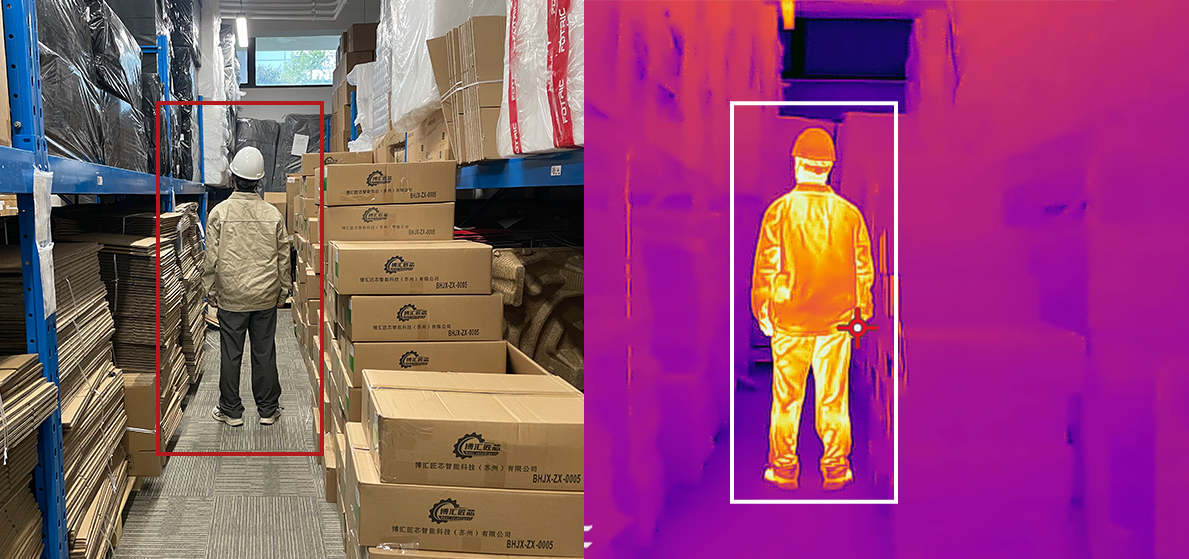

Intrusion and Crossing Detection Supports area intrusion and crossing detection. After the alert is turned on, when an abnormality occurs in the monitored area, the system monitors and alarms, and pushes information to the mobile phone, enabling timely and effective control of the scene. | |
 | |
Industrial Application Scenarios Thermal imaging cameras (with explosion - proof versions) are widely used in high - risk flammable and explosive places such as petrochemical plants, gas stations, drilling platforms, and dangerous goods storage, and can be installed indoors and outdoors all - weather. | ||
 |  |  |

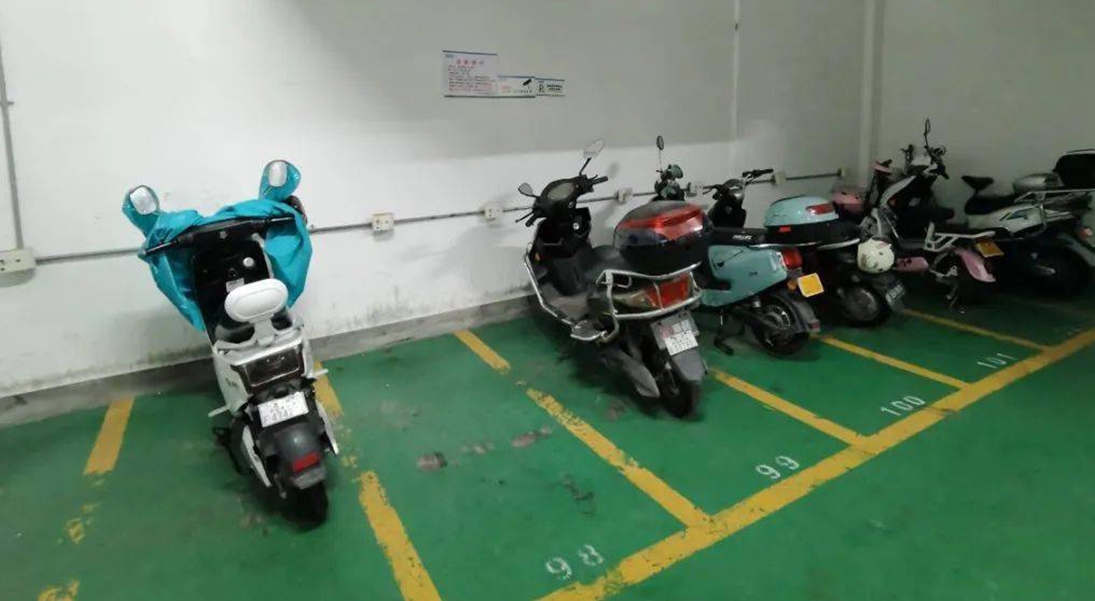

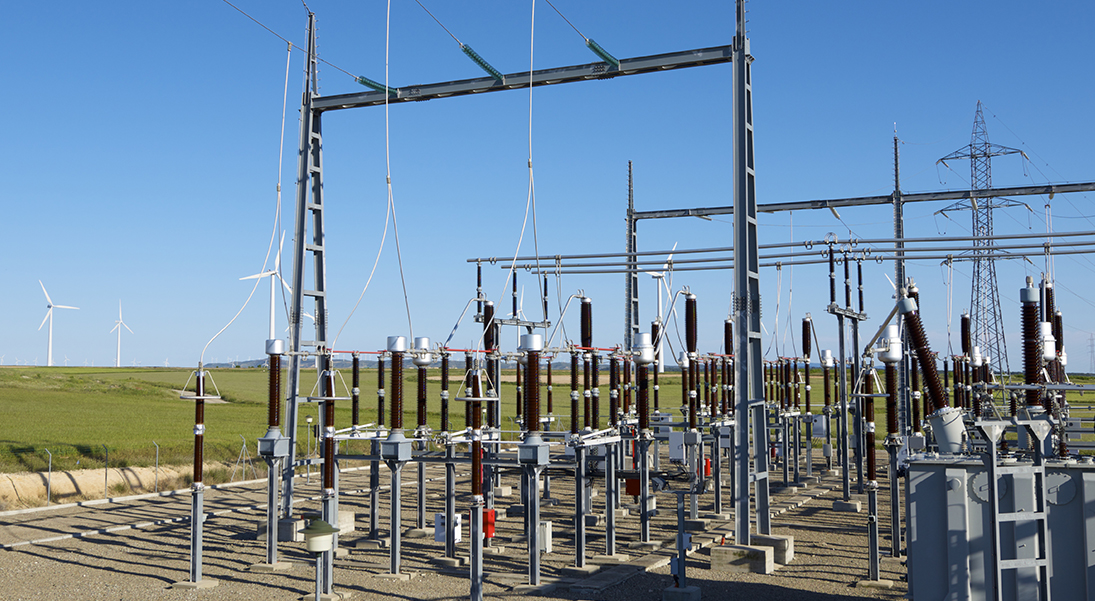

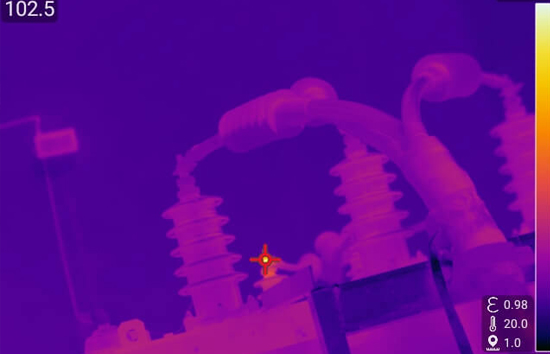

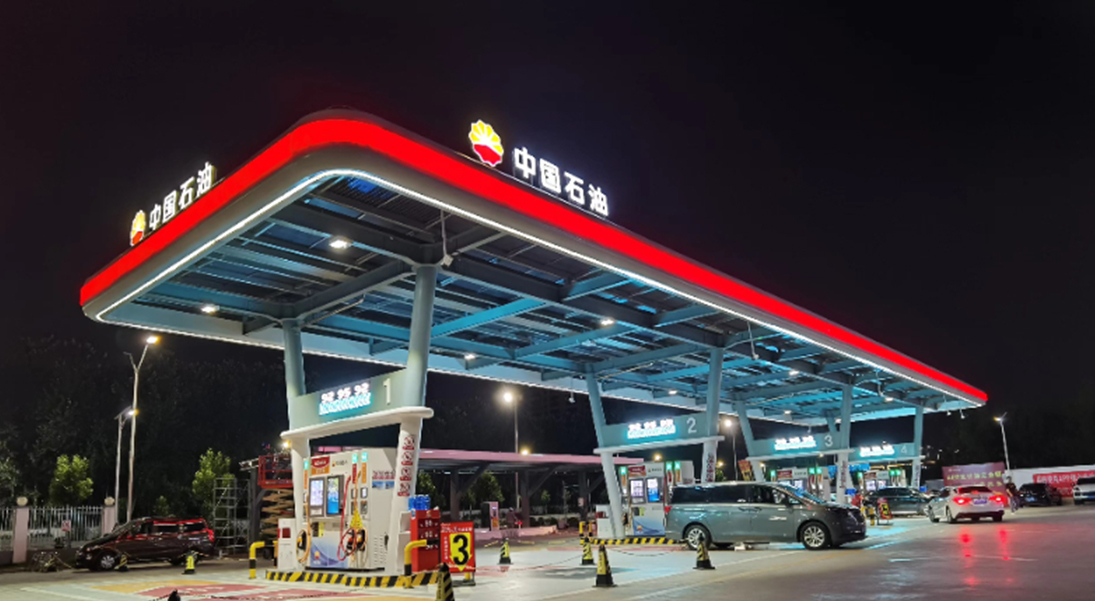

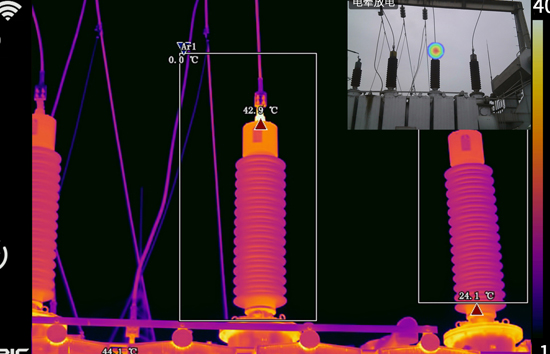

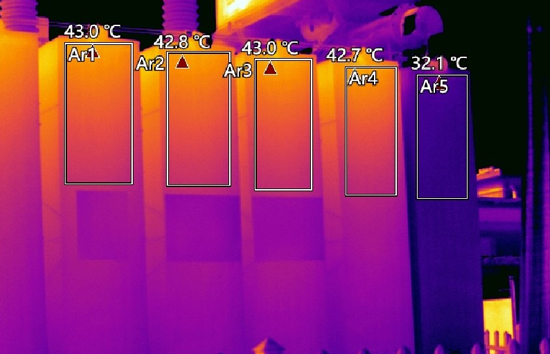

Substation Equipment Monitoring | Garage Fire Prevention Monitoring | Gas Station |
 |  |  |

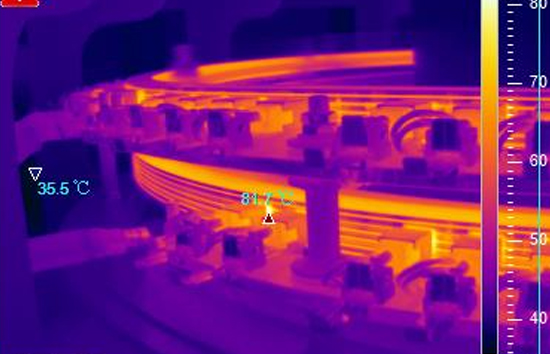

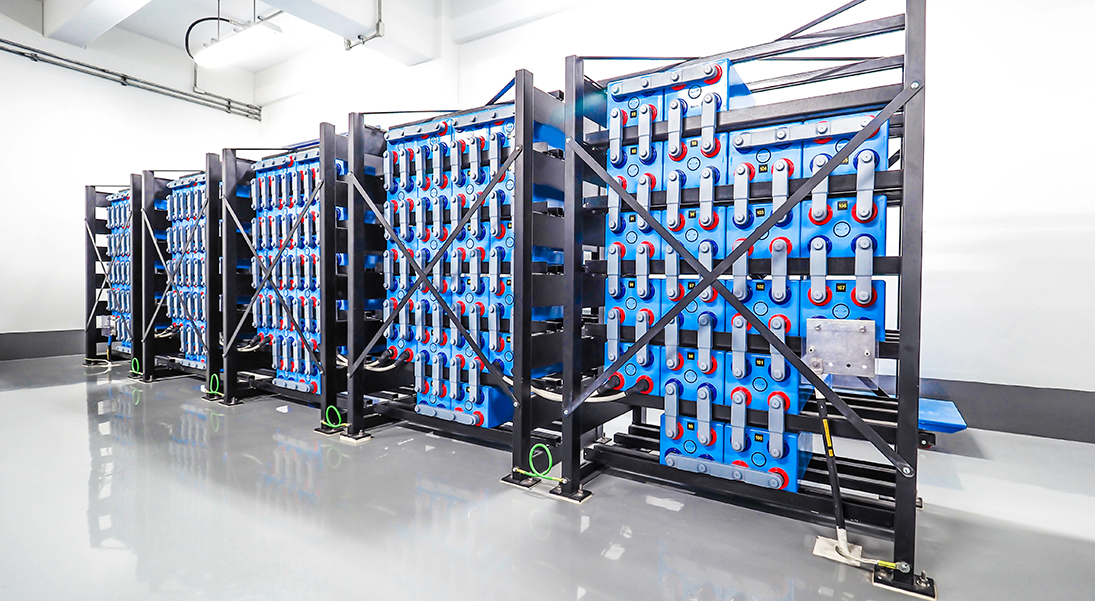

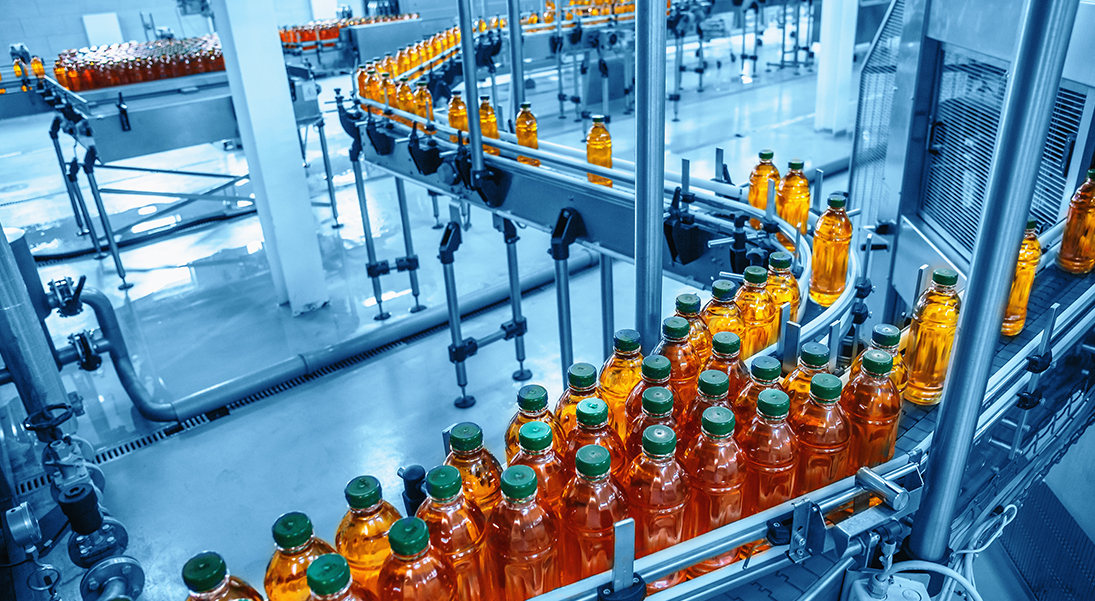

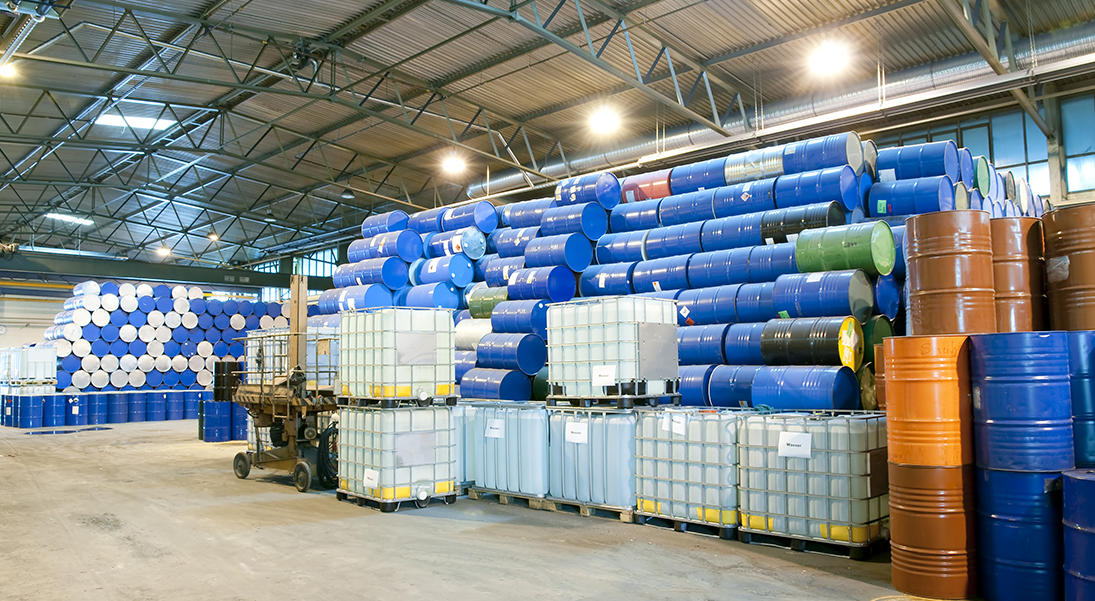

| Process Industry Quality Inspection | Lithium - battery Warehouse Fire Prevention Monitoring | Petrochemical Plant |

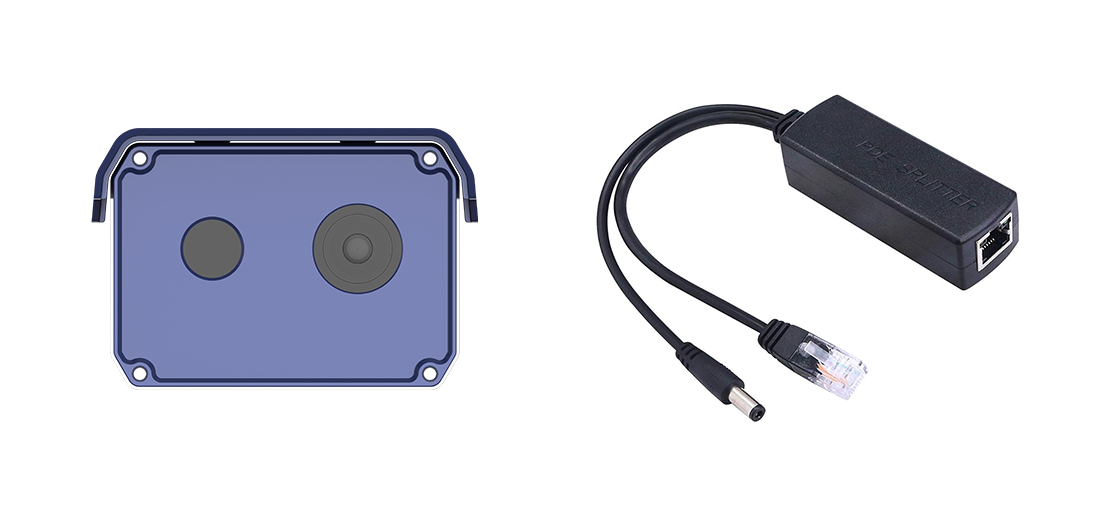

| Supports POE Power Supply Supports national standard POE power supply. No additional power source is needed, and the power - supply problem can be solved with one network cable. It also supports 12V or 24V DC power supply, which can be selected according to the on - site working conditions. | |
 | |
Supports ONVIF Protocol Compatible with recorders of multiple brands on the market, it has stable operation, strong compatibility, and is easier to combine. | |

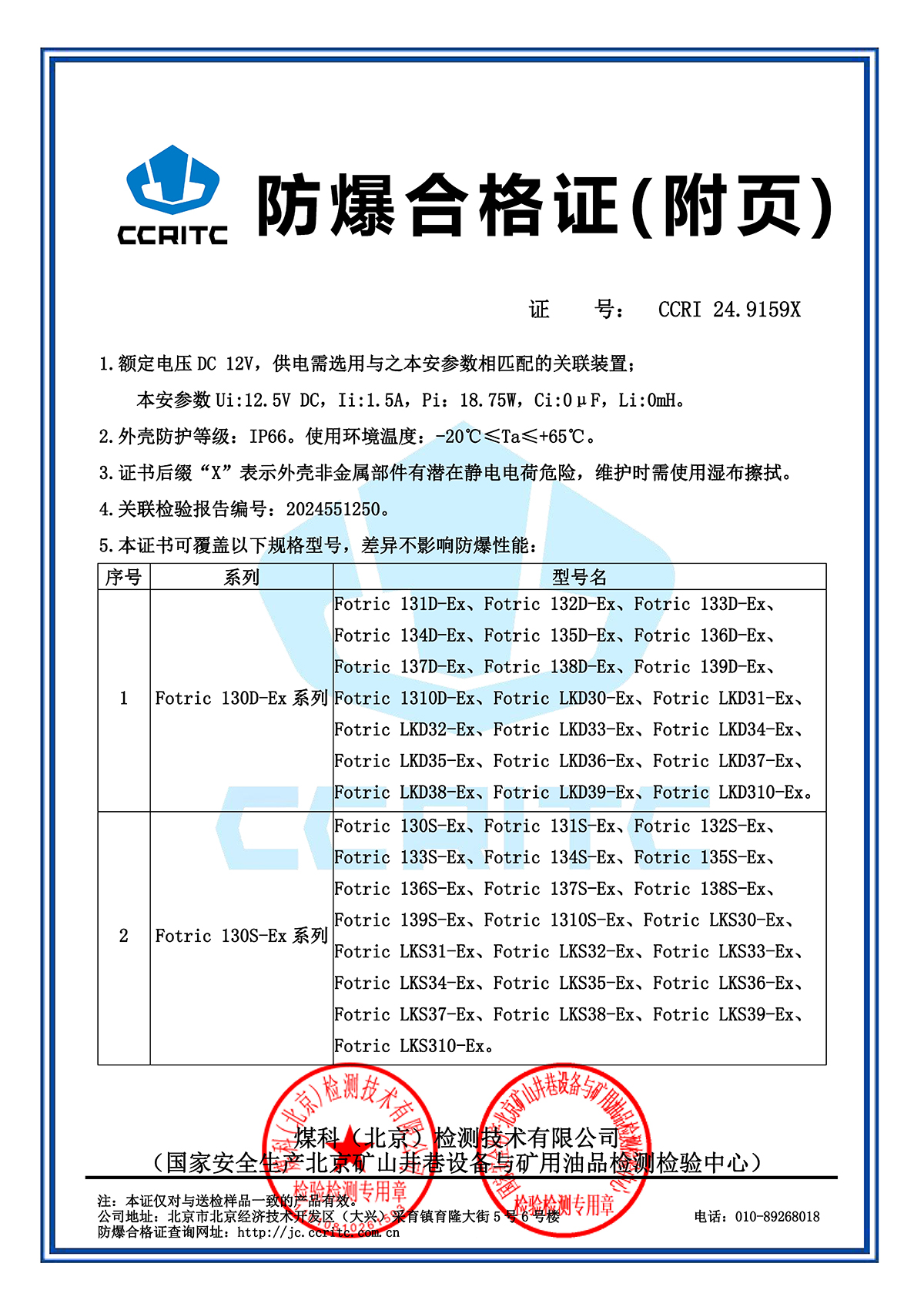

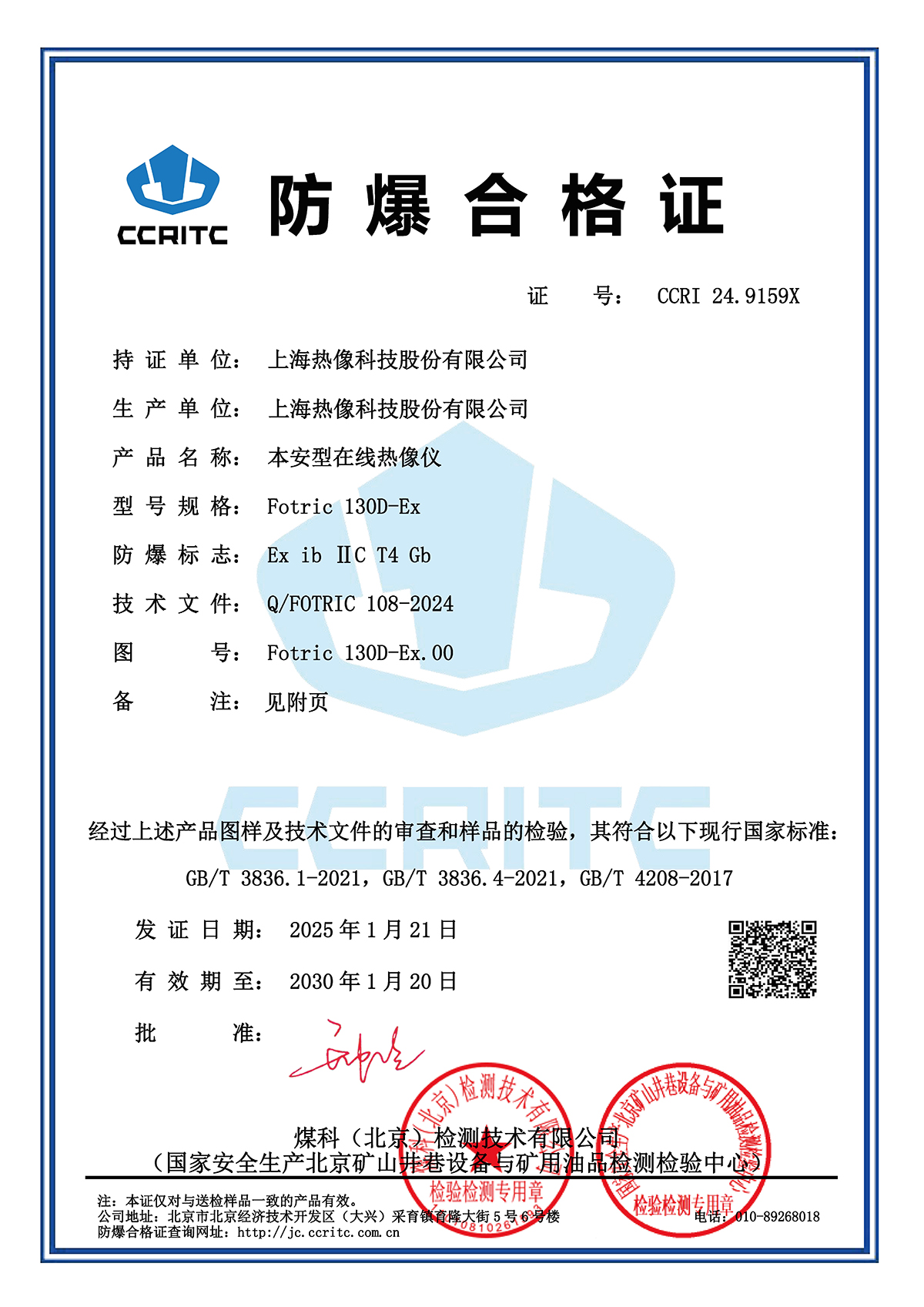

Complete Explosion - proof Qualifications The 130D - Ex series complies with national explosion - proof safety standards, with an explosion - proof mark of Ex ib IIC T4 Gb. The explosion - proof level is "high", applicable to Zone 1 and Zone 2 of all explosive gas environments except coal mines and underground. | |
 |  |
| Product dimension parameters | |
 |
