GF707 Universal Explosion-proof Gas Ultrasonic Flow Meter

The GF707 Series Gas Ultrasonic Flowmeter is equipped with high-performance ultrasonic transducers, which can effectively counteract the interference of dust, liquid droplets, and other substances in the fluid on signals, and can withstand a maximum dust or liquid droplet content of 10% (v/v). Depending on the application conditions, a variety of measurement methods can be adopted, including clamp-on, insertion, and hot-tappable sensors, with the maximum measurable pipe diameter covering up to DN6500.

Measurement Accuracy

Single-channel: ±2.0% / ±1.0% (after calibration)

Dual-channel: ±1.0% / ±0.5% (after calibration)

Working Principle

Transit-time method

Explosion-Proof Class

Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db

Protection Level

IP66

Installation Method

Clamp-on, insertion, hot-tappable

Measured Pipe Diameter

Please refer to the sensor parameter specifications in the attached document for details

Measured Medium

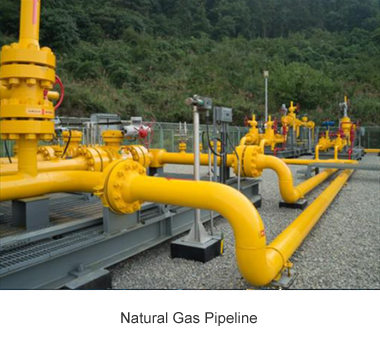

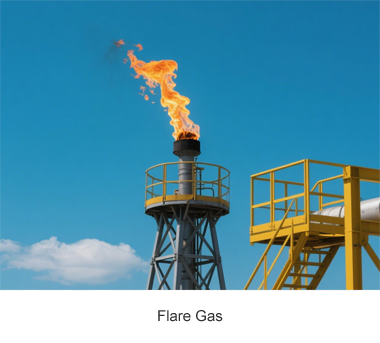

Compressed air, nitrogen, oxygen, natural gas, fuel gas, flare gas, biogas, exhaust gas, etc.

Medium Temperature Range

Please refer to the sensor parameter specifications in the attached document for details

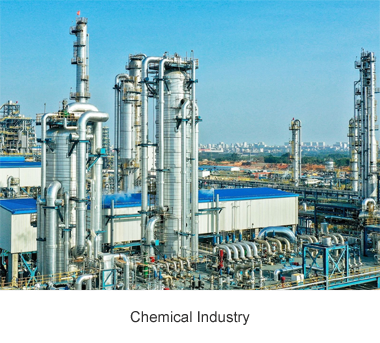

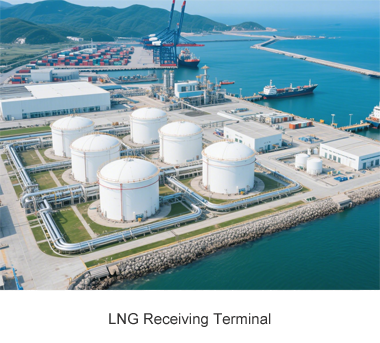

Application scenarios





Quick Selection and Matching

XG-M2

External Clamp-on Sensor

Stainless steel 316

XG-M1

External Clamp-on Sensor

Stainless steel 316

XG-K5

External Clamp-on Sensor

Stainless steel 316

XG-K3

External Clamp-on Sensor

Stainless steel 316

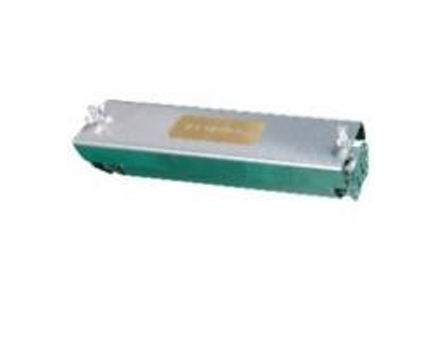

4FX-K

Sensor Mounting Box

Suitable for sensors XG - K5/XG - K3

FX-M

Sensor Mounting Box

Suitable for sensors XG-M2/XG-M1

HG-K1

Sensor Mounting Box

Titanium alloy

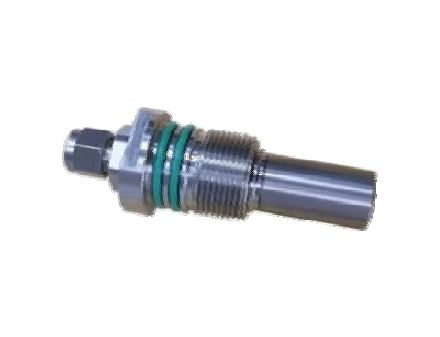

WG-K1

Insertion-type Sensor

Titanium alloy

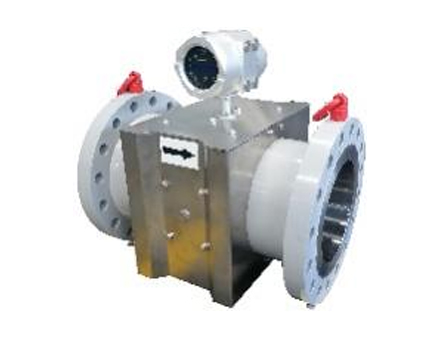

Flowmeter Body-type Sensor

Suitable for sensors GF701、GF707、GF709

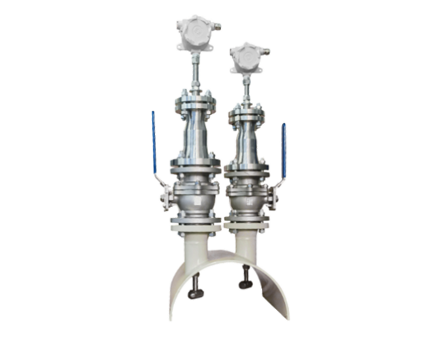

ZG-K1.5

Online Insertable/Removable Sensor

Titanium alloy

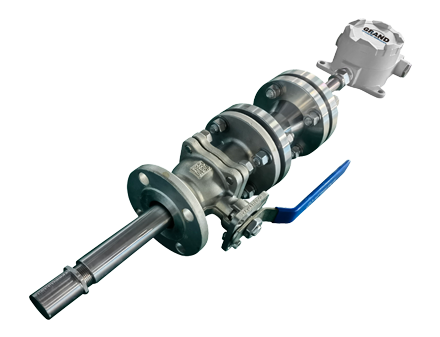

TG-K1.5

Online Insertable/Removable Sensor

Titanium alloy
