GF701 Universal Non-explosion-proof Gas Ultrasonic Flow Meter

The GF701 Series Gas Ultrasonic Flowmeter adopts ultrasonic transducers, which can effectively overcome the impact of dust, liquid droplets, and other impurities in the fluid on signals, with a maximum tolerance for dust or liquid droplet content of 10% (v/v). It supports multiple installation methods including clamp-on, insertion-type, and online insertable/removable sensors. Among them, the clamp-on sensor is equipped with a solid-state coupling pad, featuring maintenance-free operation that allows long-term use without the need for coupling agent replacement. The flowmeter covers a maximum pipe diameter of DN6500 and is equipped with a unique temperature buffer plate system, enabling temperature measurement ranging from -200℃ to 600℃.

Measurement Accuracy:

Single channel: ±2.0% / ±1.0% (after calibration)

Dual channel: ±1.0% / ±0.5% (after calibration)

Working Principle:

Transit-Time Difference Method

Explosion-Proof Option:

Non-Explosion-Proof

Protection Class:

IP66

Installation Methods:

Clamp-on, Insertion-type, Online Insertable/Removable

Applicable Pipe Diameters:

Refer to the sensor parameters specified in the attached document

Measuring Medium:

Compressed air, nitrogen, oxygen, natural gas, fuel gas, flare gas, biogas, exhaust gas, etc.

Medium Temperature Range:

Refer to the sensor parameters specified in the attached document

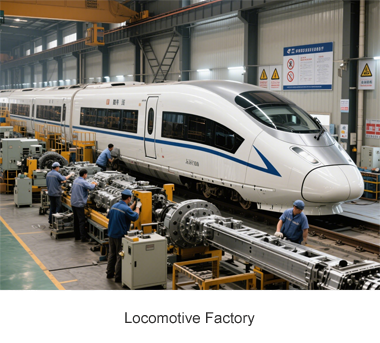

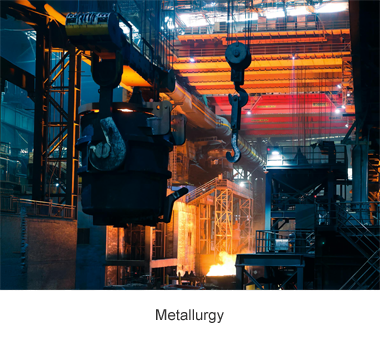

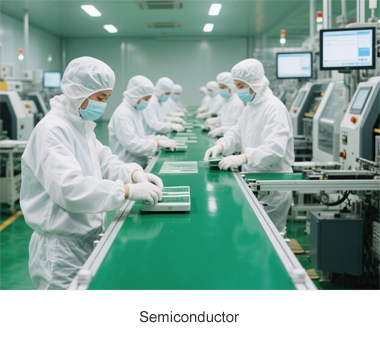

Application scenarios





Quick Selection and Matching

XG-M2

External Clamp-on Sensor

Stainless steel 316

XG-M1

External Clamp-on Sensor

Stainless steel 316

XG-K5

External Clamp-on Sensor

Stainless steel 316

XG-K3

External Clamp-on Sensor

Stainless steel 316

4FX-K

Sensor Mounting Box

Suitable for sensors XG-K5/XG-K3

FX-M

Sensor Mounting Box

Suitable for sensors XG-M2/XG-M1

HG-K1

Sensor Mounting Box

Titanium alloy

WG-K1

Insertion-type Sensor

Titanium alloy

Flowmeter Body-type Sensor

Suitable for sensors GF701、GF707、GF709

ZG-K1.5

Online Insertable/Removable Sensor

Titanium alloy

TG-K1.5

Online Insertable/Removable Sensor

Titanium alloy
