G868 High-temperature Liquid Ultrasonic Flowmeter

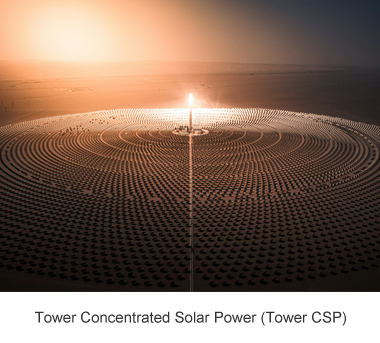

The G868 is a high-temperature ultrasonic flowmeter, which is particularly important in applications such as concentrated solar power (CSP) and molten salt energy storage. As a medium for transferring and storing thermal energy, molten salt can operate at temperatures up to nearly 600℃, and high-temperature environments place higher requirements on the accurate measurement of flow rates. The ultrasonic flowmeter launched by GURUIDA Automation for the solar CSP industry is suitable for flow measurement of high-temperature molten salt, high-temperature hot water, high-temperature heat transfer oil, asphalt, waxy oil, oil slurry, etc.

Measurement Accuracy:

Single channel: ±1.0%

Dual channel: ±0.5%

Working Principle:

Transit-Time Difference Method

Explosion-Proof Rating:

Non-Explosion-Proof

Protection Class:

IP66

Installation Method:

Pipeline-Type Design

Applicable Pipe Diameters:

DN50 ～ DN1200 / For other diameters, please consult the factory for details

Measurement Functions:

Operating Condition Volumetric Flow Rate, Standard Condition Volumetric Flow Rate, Mass Flow Rate

Measuring Medium:

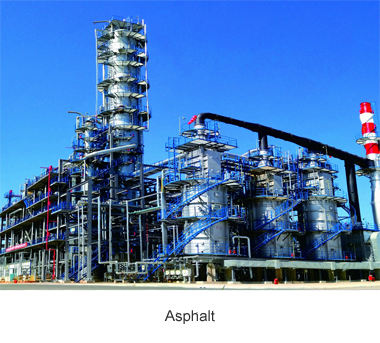

High-temperature molten salt, high-temperature hot water, high-temperature heat transfer oil, asphalt, waxy oil, oil slurry, etc.

Medium Temperature Range:

-70～400℃ / -70～600℃ / For other temperature ranges, please consult the factory for details
